VELD-03VL-I-Q ( Washer Drain Valve 220V )
Original price was: $900.00.$850.00Current price is: $850.00.

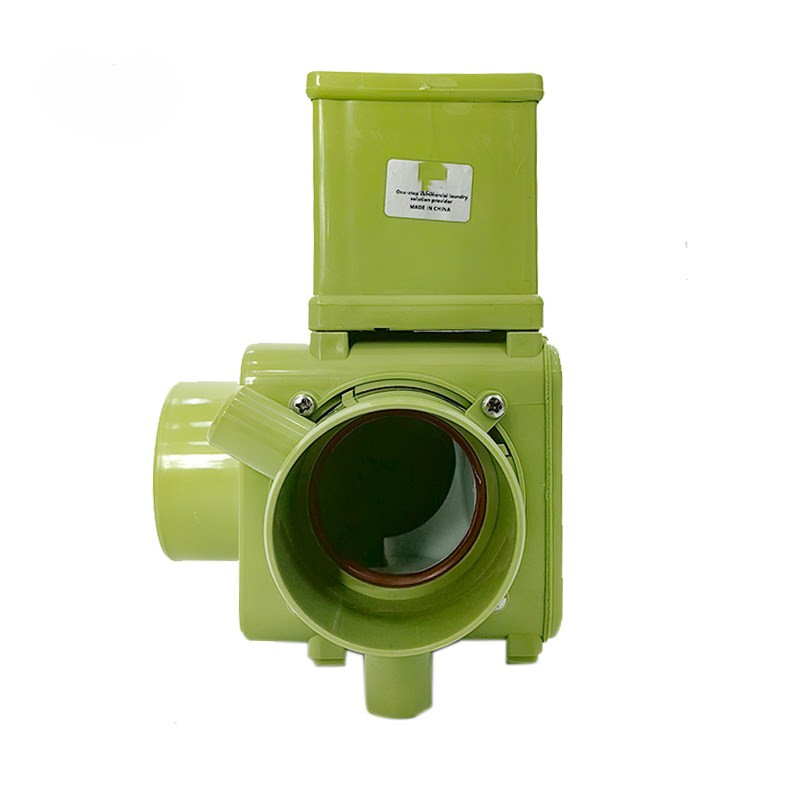

VELD-03V/L-I-Q model (from the Peng Shuai series), which is a 90-Degree Right-Angle Motorized Drain Valve with an Overflow Port. It is used in heavy-duty commercial washers, hotel laundry systems, and industrial washer-extractors.
Model Code Breakdown (VELD-03V/L-I-Q)
VELD: Motorized / Electric Drain Valve series (Peng Shuai / OEM standard).
03: 3-Inch Port Size (75 mm inlet/outlet diameter for high-flow gravity discharge).
V/L (90° Angle): Indicates a Vertical / Right-Angle (L-Shape) flow design, as opposed to the inline 180° straight-through design (
VEID-180).I-Q: Standard 220V AC Electric Actuator casing (Green corrosion-resistant ABS/polypropylene body).
Auxiliary Port: The small angled barb protruding near the inlet is the Tub Overflow Connection to prevent overfilling in the wash drum.
Technical Specifications
| Feature | Specification |
| Port Size | 3 Inches (75 mm) |
| Angle / Flow Path | 90° Right Angle |
| Operating Voltage | 220V AC (50/60 Hz) |
| Default Position | Normally Open (NO) (Power ON to close, Power OFF to drain) |
| Features | Integrated overflow spout, internal microswitch protection |
| Common Brands | Peng Shuai, Girbau, Alliance, Sea-Lion, Sailstar, local commercial washers |
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
